SMT Stencil



SMT stencil (PCB stencil) is an important tools for printing solder paste accurately on circuit board. This stencil makes reliable soldering of components, improve production efficiency, and reduce defects. Fanway offers high quality, cost efficient SMT stencils.



SMT Stencil Types

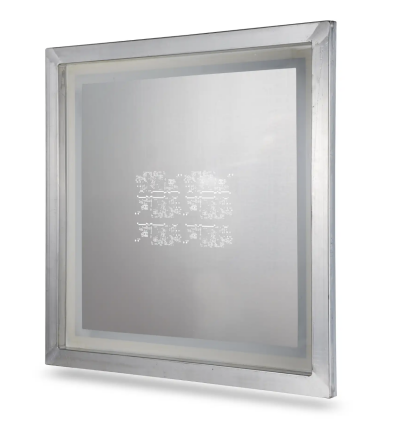

1. Framed Stencils

Framed stencils are made by aluminum material, it has high stability, durability and compatibility. Due to fast setup operation, the best solution for high volume production.

2. Frameless Stencils

Frameless stencil is a laser-cut stainless steel sheets, it can reusable use. The key advantage cost effective for prototypes and small batches, as well as lightweight and easy to store.

3. Hybrid Step Stencils

Hybried step stencils is the best solution for mixed components designs requiring different thickness of soldering paste like BGAs and fine-pitch parts.

4. Nano Coated Stencils

Nano coated stencils reduces solder paste residue, extends stencil lifespan and reduces cleaning.



How to Selecting the Right Stencil?

Laser-Cut: The best solution for high precision (±0.01mm) and small components like 0201 or QFNs.

Chemical Etch: It is widely used for standard components and large orders.

Electroformed: It is the good choice for complex designs like ultra-fine pitch (≤0.3mm).

Prototype Stencils: Fast CAD/Gerber to stencil production for testing.



Why Choose Us?

Technology: We have laser cutting and chemical etching for precision.

Various Materials Support: We have different material on optional like stainless steel (304/316), nickel, and alloys.

Customize: We can adjust thickness (0.08mm–0.2mm) and aperture designs.

Fast Delivery: We support 24-hour prototyping service.

Sustainable: We have recycling programs for frameless stencils.
