Fast Turnaround Partner in FR-4 Hybrid PCB Manufacturing
FR4-Rogers Hybrid PCBs combine the cost-efficiency of FR4 with the superior high-frequency performance of Rogers materials, delivering an optimized solution for applications requiring both standard and high-speed circuitry.
We specialize in end-to-end PCB manufacturing service with expert design support, rapid prototyping, and scalable production to ensure the perfect balance of performance and affordable cost.

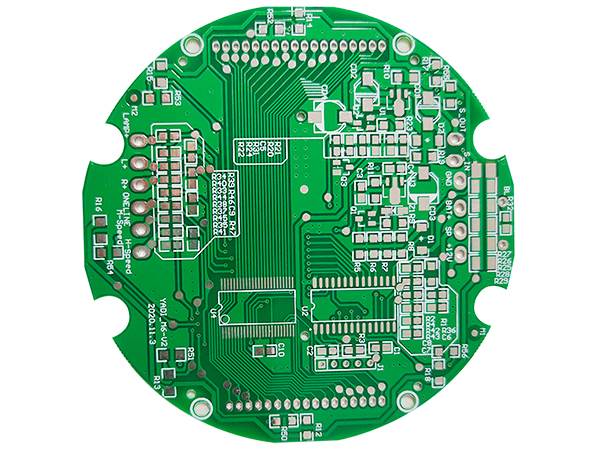

FR-4 PCB Specifications
Feature | Capability |
Layer Count | Up to 108 layers |
Board Thickness | 0.2mm – 8.0mm |
Max Panel Size | 600mm × 1200mm |
Copper Thickness | 0.5oz – 10oz |
Min Line Width/Space | 3mil/3mil |
Aspect Ratio | 20:1 |
Surface Finishes |
HASL, ENIG, Immersion Silver, Immersion Tin, OSP, Gold Finger, Hard Gold Plating |
Materials |
FR4 (TG150/TG170), Rogers (RO4000, RO3000), Taconic, Arlon, Isola, Panasonic Megtron |
The Benefit of FR4-Rogers Hybrid PCBs
Cost Optimization – Strategic use of FR4 and Rogers reduces costs.
Enhanced Signal Integrity – Low loss and stable dielectric properties for RF/microwave applications.
Thermal Management – Superior heat resistance and dissipation.
Flexible Design Options – Custom configurations for various industries.
Fast & Scalable Production – Prototypes to high-volume orders with consistent quality.
Certified Quality – Compliant with ISO, UL, IPC, and RoHS standards.
