Aluminum PCB

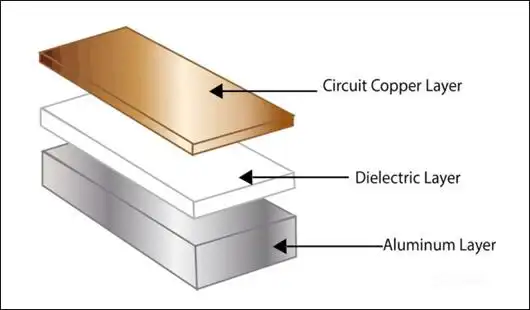

Fanway specializes in aluminum based metal core PCBs (MCPCBs) for high frequency thermal applications. As a professional manufacturer and supplier in China, our cost effective aluminum substrates deliver perfect heat dissipation and durability.


Why Choose Us?

Custom Solutions: Our experienced R&D team designs tailored solutions to meet your specific requirements.

Fast Prototyping: Our simplify development ensuring quick turn prototyping.

Scalable Production: Our advanced equipment and efficient processes ensure high volume output.

Technical Support: Our expert assist 24/7 for design optimization and production.



Benefits of Aluminum PCBs

● Extreme heat dissipation performance

With thermal conductivity (1-12 W/(m·K)) dozens of times higher than conventional FR4 substrates (0.3 W/(m·K)), directly lowering component temperatures by 20-30°C. Coupled with its ultra-low thermal resistance design (0.3-1.5°C/W), it utterly dwarfs traditional PCBs in cooling efficiency, effortlessly achieving over 80% performance enhancement.

● Mechanical Design

Bending Strength: >800 MPa (3x higher than FR4) when using 6061 aluminum alloy.

Vibration Resistance: Passes 10–2000Hz random vibration tests.

Lightweight: 1.0mm-thick boards handle 10W/cm² heat dissipation, 60% lighter than copper heatsinks.

● Electrical Performance

EMI Shielding: reduces high frequency interference by 30–100dB.

Stable Insulation: Ceramic filled dielectric layer maintains ε=3.5–5.0 @1MHz.

High Voltage Safety: Withstands 3–8kV AC for medical and industrial applications.

● Reliability Improvement

Thermal cycle test, damp-heat aging, and salt-spray corrosion, cost-effectiveness

● Environment

Operates in -50°C to +150°C conditions with corrosion resistant protection.



Applications

Aluminum PCB is widely used in the industries like LED lighting, automotive systems, 5G/RF modules, industrial power devices, and medical equipment.
