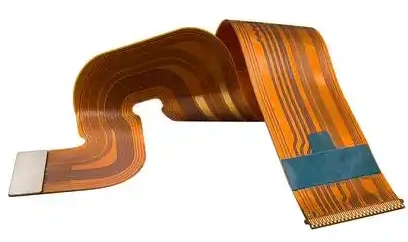

FPC PCB



Fanway is a trusted manufacturer and supplier in China, specialize in FPC PCB production, offering one-stop solutions for diverse project requirements.



Design and Manufacturing



Design: Our DFM engineering team analysis your designs for optimal performance.

Precision Engineering: Our advanced laser drilling and micro-via technologies enable high density interconnects, and controlled lamination processes ensure reliability in rigid flex integration.

Quality Control: Every PCB undergoes 100% electrical testing and automated optical inspection (AOI).

Flexible Production: We have rapid prototyping services and low to high volume manufacturing.



Construction of FPC PCB


Layer            Material        Thickness Range       Purpose

Base Layer            Polyimide (PI)         12.5–50μm         Insulation & structural support

Conductive Layer         Rolled Annealed               Copper 9–35μm      Signal transmission

Protective Coverlay        PI/PET             12.5–25μm        Circuit shielding

Bonding Layer           Acrylic/Epoxy           15–25μm        Secure layer adhesion
